A Single Girder EOT Crane helps lift heavy things in a cheap and space-saving way in places like workshops, warehouses, and factories. Its compact design excels in light to medium-duty applications, ensuring precise and reliable load handling.
Introduction
Efficient material handling is critical for industrial productivity, enabling faster workflows and reduced downtime in manufacturing and logistics.
A Single Girder EOT Crane helps lift heavy things in a cheap and space-saving way in places like workshops, warehouses, and factories. Its compact design excels in light to medium-duty applications, ensuring precise and reliable load handling.
This guide covers:
-
What is a Single Girder EOT Crane?
-
Key Features and Benefits
-
Single vs. Double Girder Cranes
-
Customization Options
-
Maintenance Tips
-
Why Choose Consolidated SWIFT?

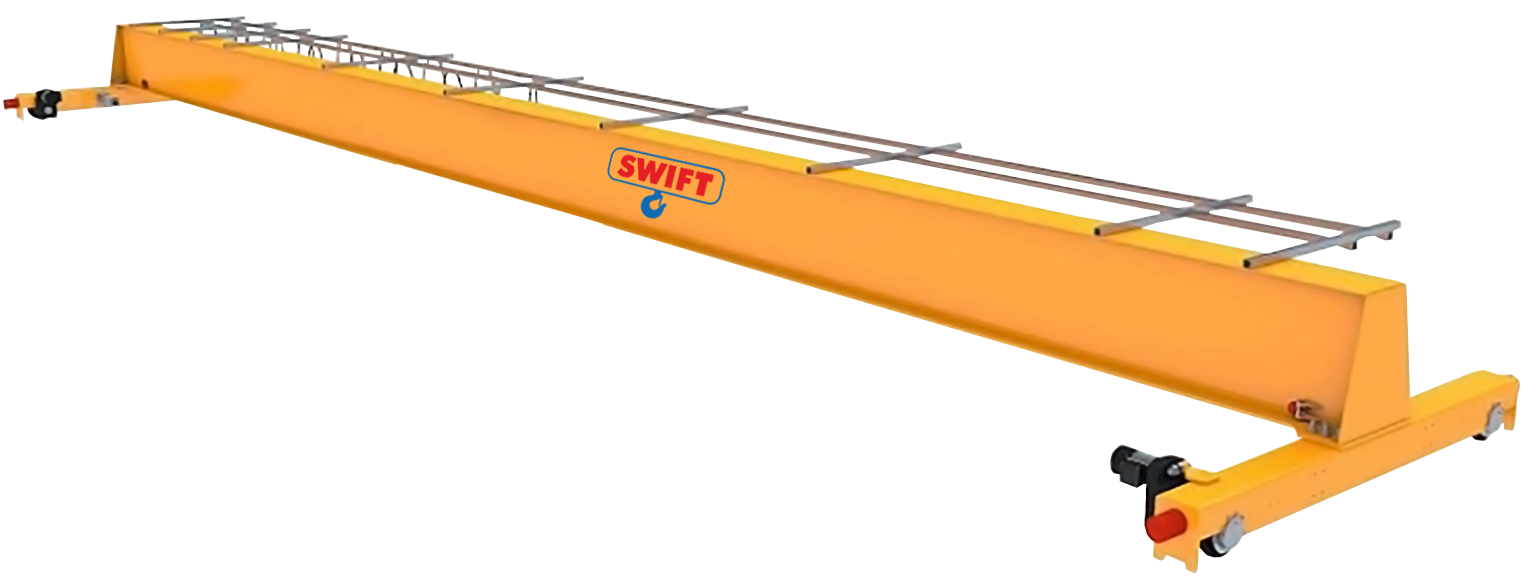

What is a Single Girder EOT Crane?
A single girder EOT crane is a robust lifting system with:
-
Main girder: Welded box-type or rolled I-beam, made from high-strength steel.
-
Electric hoist: Wire rope or chain hoist with 3-8 m/min lifting speeds, powered by 5-20 kW motors.
-
End carriages: Wheels for smooth movement along runway rails.
-
Controls: Pendant, radio remote, or cabin for precise operation.
These cranes are ideal for various industries, including automotive, steel fabrication, logistics, construction, and manufacturing. They work well in low-headroom spaces of 6 to 8 meters and are good for light to medium-duty tasks.
Key Features and Benefits
1. Space Efficient
-
Minimizes hook approach, maximizing floor space.
-
Fits low-ceiling facilities, ideal for small workshops.
2. Strong and Safe
-
High-tensile steel girder supports up to 35 tons.
-
DC electromagnetic brakes and limit switches ensure secure load handling.
-
Overload protection and emergency stop prevent accidents.
3. Efficient Operation
-
Compact drives enable precise load positioning.
-
Optional VVVF drives offer adjustable speed control for accuracy.
-
TEFC motors (IP55-rated, Class F insulation) ensure reliability and durability.
4. Low Maintenance
-
Durable wire ropes and modular design reduce wear and simplify repairs.
-
Regular maintenance can extend the life of a crane to 20 years or more.
Single Girder vs. Double Girder EOT Cranes
Feature Single Girder Double Girder Construction:
One girder, Two girders
Capacity Up to 35 tons Up to 500+ tons
Span Up to 30 meters Up to 40+ meters
Headroom Low (6-8 m) Higher (8-12 m)
Cost Economical Higher
Maintenance: Simple, low-cost Complex, costly
Applications: Small workshops, Large factories
Choose Single Girder If:
-
The budget is limited.
-
Space is constrained.
-
Loads are under 35 tons.
Choose Double Girder If:
-
Heavy-duty lifting (50+ tons).
-
Longer spans or high-precision tasks.
-
Ample headroom is available.
Customization Options
Consolidated SWIFT offers tailored solutions:
-
Safety: Anti-collision sensors, slack wire limit switches, load limiters with displays.
-
Controls: Radio remotes, independent pendants, tandem hoist operation.
-
Durability: Galvanized coatings, heavy-duty gears, and bridge lights for visibility.
Applications and Case Study
Single girder EOT cranes excel in:
-
Automotive: Lifting engines or chassis.
-
Steel Fabrication: Handling heavy plates.
-
Logistics: Streamlining warehouse operations.
Case Study: A Pune workshop installed a 10-ton single-girder EOT crane in 2023 (15-meter span, radio remote). It fit a 6-meter ceiling, boosted efficiency by 40%, and paid off in 18 months.
Maintenance Tips
-
Monthly: Lubricate wire ropes, check for wear.
-
Quarterly: Inspect brakes and limit switches.
-
Annually: Verify girder alignment and motor insulation.
-
Compliance: Follow IS 3177 standards.
Why Choose Consolidated SWIFT?
-
Made in India: Local expertise.
-
30+ Years Experience: Proven crane engineering.
-
ISO-Certified: ISO 9001 compliant.
-
Free Consultation: Expert crane selection guidance.
-
24/7 Support: Technical assistance and spare parts are available.
Conclusion
Single girder EOT cranes offer cost effective and reliable lifting for light to medium-duty tasks. Consolidated SWIFT’s cranes combine safety, customization, and durability for optimal performance.
