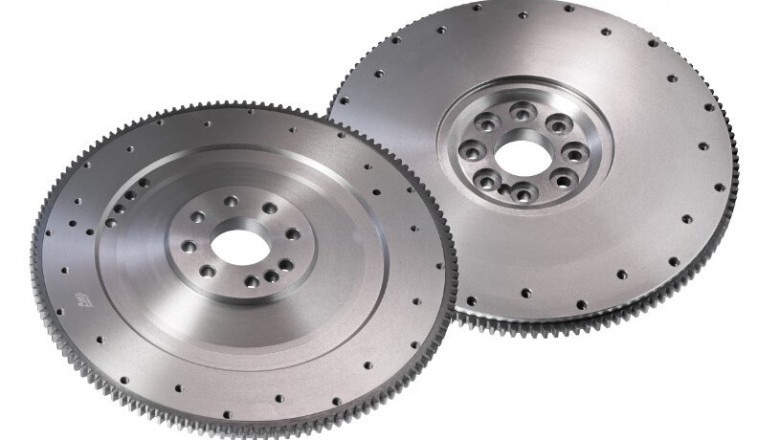

What is an Automotive Flywheel?
An automotive flywheel is a circular metal disc which is attached to the crankshaft in internal combustion engines. Its primary function is to store rotating energy and help prevent fluctuations in the speed of the engine. The flywheel acts like a rotating inertial mass that maintains uniform rotation between the power strokes in a reciprocating engine.
Working and Mechanism of Automotive Flywheel
Automotive Flywheel is located between the engine's crankshaft and the clutch assembly. As the crankshaft turns due to the pistons working in the cylinders, it imparts rotational motion to the flywheel. The heavy mass of the flywheel causes it to maintain continuous rotation even when the crankshaft speed fluctuates during combustion cycles. When the engine is running, kinetic energy is constantly being transferred back and forth between the reciprocating parts and the rotating parts. The flywheel helps smooth out these energy fluctuations by acting as an inertia store. This ensures an even torque delivery from the engine to the transmission gearbox. The rotation of the flywheel is then transferred to the transmission through the clutch during gear changes.
Construction and Materials Used
Traditionally, automotive flywheels were made of cast iron due to its suitable physical and mechanical properties. The material needs to be dense, hardwearing and have a high inertia value. Modern flywheels are now commonly manufactured from ductile cast iron or cast steel alloys for added strength. Flywheels have a ring-shaped hub portion which mounts directly onto the crankshaft. Multiple shoe weights are cast onto or bolted around the outer perimeter to maximize the rotational inertia. Modern designs also incorporate a multi-part construction for weight saving. The central plate holds the clutch assembly while the outer rim contains the shoe weights.
Flywheel Design Considerations
Several design factors need careful consideration for optimum flywheel performance:
Mass Distribution - Concentrating mass away from the axis of rotation provides greater rotational inertia. Optimal weight distribution minimizes vibrations.
Stresses - Complex stress patterns exist due to fluctuating engine loads. Flywheels need to withstand both torsional and bending stresses over long periods.
Weight - Heavier flywheels dampen torque fluctuations better but increase overall vehicle weight negatively impacting performance and fuel efficiency. Lighter designs balance both needs.
Diameter - Large diameter increases swept area and rotational inertia for better damping. But it also increases overall engine size constraints.
Load Fluctuations - Engines with smoother load patterns require less flywheel inertia compared to fluctuating loads like diesel engines.
Clutch Compatibility - Size, bolt pattern and friction surface design matches the specific clutch assembly for driveline compatibility.
Manufacturing Ease - Design facilitates less complex and more economical casting or machining production process.
Function of Flywheel in a Vehicle
A correctly sized flywheel plays a crucial role in the operation of a vehicle:
- Smoothens torque delivery for a continuous flow of power to the wheels rather than an intermittent pulsing action.
- Prevents stalling by maintaining sufficient rotation between gear changes allowing smooth clutch engagement.
- Absorbs reaction torque spikes from engine combustion to protect drivetrain components from shock loads.
- Enables efficient power transfer and operation of modern automotive transmissions which rely on a constant rotational velocity from the engine.
- Stores rotational energy recovered during deceleration to aid acceleration and improve overall vehicle efficiency.
- Dampens engine vibrations and noise transmitted to the vehicle structure and occupants through its inertia and flexibility.
Signs of a Faulty Flywheel
Problems occur when the flywheel becomes out of balance or develops cracks due to material fatigue. Indications of an faulty flywheel include:
- Engine vibration felt through pedals and steering under acceleration.
- Clunking noise from the transmission during gear shifts.
- Premature clutch wear, slipping or grabby engagement.
- Difficulty starting the engine or keeping it running smoothly.
- Random misfires or surges in engine rpm especially under load.
- Cracks or fractures visible during inspection are a clear sign for replacement.
In the automotive flywheel is an important rotational component which smoothens torque delivery and ensures reliable operation of internal combustion engines used in modern vehicles. Correct sizing and design are necessary to balance damping requirements with other performance and efficiency needs. Careful monitoring helps detect potential issues before complete failure impacts drivability.
